Towable Aerial Boom Lift Telescopic Lifter Boom Lift Access Platform For Construction

Product Categories
Qingdao Heshan Industry Co., Ltd.
Contact Now

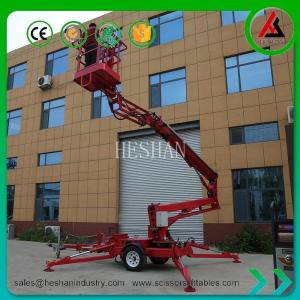

Towable Aerial Boom Lift Telescopic Lifter Boom Lift Access Platform For Construction

  • 1
  • 2

Brand Name : HESHAN

Model Number : CP

Certification : CE,ISO,SGS,ROHS

Place of Origin : China

MOQ : 1 set

Price : USD 8000~USD 30000

Payment Terms : T/T, Western Union, MoneyGram, L/C

Delivery Time : 15-25 work days

Packaging Details : Export packing cases

Application : plant installation, maintenance, venue construction,maintenance, construction engineering, large-scale warehousing, aviation,aerospace industry applications, airports,harbors, urban utilities,gardening, curtain wall engineering

Feature : Easy Operation Safety Convenience, platform 360° rotation, Low noise, Electrostatic spraying painting, Self-Propelled Hydraulic Mobile

Max. Working height : Up-and-over height up to 60'

Power supply : Diesel-powered,Battery powered

Load Capacity : 200kg

Color : Blue, Red, Yellow,Orange

Table Size : 0.9*0.7M

Lifting height : 8m,10m,12m,14m,16m,19m,22m

Power : Diesel,Battery,Hybrid dual power

Machinery Test Report : Provided

Warranty : 1 Year

Drive Speed : 2.5-4km/h

Gradeability : 30%

Horizontal Outreach : 13-21m

Contact Now

Towable Aerial Boom Lift Telescopic Lifter Boom Lift Access Platform For Construction

Boom lift access platforms are commonly used in construction to provide safe and efficient access to high and hard-to-reach areas. These lifts feature a telescopic or articulated boom that can be extended and positioned precisely, enabling workers to perform tasks such as installation, repair, and maintenance of building elements, such as windows, facades, and roofs.
Built with the highest quality materials and advanced safety features, our boom lifts are designed to keep you and your team safe and secure while working at heights. From rough terrain boom lifts to lightweight and portable options, we've got the perfect solution for any job.
Specification:
Model Type CP-10A CP-12A CP-14A CP-16A CP-18A CP-20A
Lifting height 10M 12M 14M 16M 18M 20M
Working height 12M 14M 16M 18M 20M 22M
Load capacity 200KG
Platform size 0.9*0.7M
Working radius 5.5M 6.5M 8.5M 10.5M 11M 11M
Net Weight 1855KG 2050KG 2500KG 2800KG 2800KG 3500KG
Overall Size( L*W*H) 5.2*1.7*2.1M 6.2*1.7*2.1M 5.6*1.7*2.1M 5.7*1.7*2.2M 6.5*1.8*2.3M 5.8*1.9*2.3M
Supporting Legs Stride Distance(Horizontal) 3.0 M 3.6 M 3.6 M 3.9 M 3.9 M 3.9 M
Supporting Legs Stride Distance (Vertical) 4.7 M 4.7 M 4.7 M 4.9 M 4.9 M 4.9 M
Wind Resistance Level ≦5

Towable Aerial Boom Lift Telescopic Lifter Boom Lift Access Platform For ConstructionTowable Aerial Boom Lift Telescopic Lifter Boom Lift Access Platform For Construction

Features & Advantages

  • China's renowned YSD diesel pump station.
  • Electrical box with waterproof and dustproof features, ideal for outdoor use.
  • Control panel that is protected from rain.
  • Self-leveling feature for optimal and safe operation.
  • Water-resistant diesel engine, motor, and battery cover.
  • Maintenance access point designed for easy use.
  • Manually operated diesel engine accelerator, providing more flexible operation.
  • Double cylinders with balance valve and emergency decline switch, ensuring safety even in case of hydraulic hose rupture.
  • Basket leveling switch, making adjustments easier.
  • Torsion shaft with excellent shock absorption for improved road performance.
  • Hydraulic oil filtration alarm system that reminds you to replace oil if impurities are present.
  • Basket and arm lock system to prevent equipment body sway during transportation.
  • Illuminated platform for working.
  • Brake lights connected to the tractor.
  • Anti-pinch basket.
  • Safety harness for operator protection.
  • Stable rotary motor capable of 360-degree rotation.
  • Free quick wear parts for prompt replacement included in the offer.
  • Touch display fault code, easy maintenance.

Touch display fault code, easy maintenance.

A towable manlift for sale is a great investment for any business that needs to work at heights. These machines are versatile, efficient, and safe, making them ideal for a wide range of tasks.
One of the most popular types of towable manlifts is the tracked manlift. These machines are designed to navigate uneven terrain with ease, thanks to their rubber tracks that can grip the ground and provide stability. Another popular option is the towable boom lift, which provides a long reach and a wide range of motion, making it ideal for tasks such as painting, roofing, and more.
If you're looking for something even more versatile, a spider boom lift might be just what you need. These machines are designed to navigate tight spaces and complex environments, making them ideal for indoor or outdoor work. And if you need something that's easy to transport and maneuver, a cherry picker could be the perfect solution.
No matter what type of towable manlift you choose, it's important to choose a machine that's reliable, efficient, and safe. With the right machine, you can boost your productivity and get the job done right.

Increased Reach for High-Level Maintenance:
Our Cherry picker provides an extended reach for high-level maintenance tasks. With its impressive height capabilities, it eliminates the need for cumbersome scaffolding or risky climbing. Whether it's changing light bulbs, conducting inspections, or performing repairs, our Cherry picker offers a safe and efficient solution for reaching elevated areas.
Optimal Stability for Precise Operations:
Stability is key when working at heights, and our Cherry picker ensures optimal stability for precise operations. Equipped with advanced stabilization systems and robust outriggers, it maintains a steady platform, even in challenging conditions. This allows operators to work with confidence and precision, enhancing overall productivity and safety.
